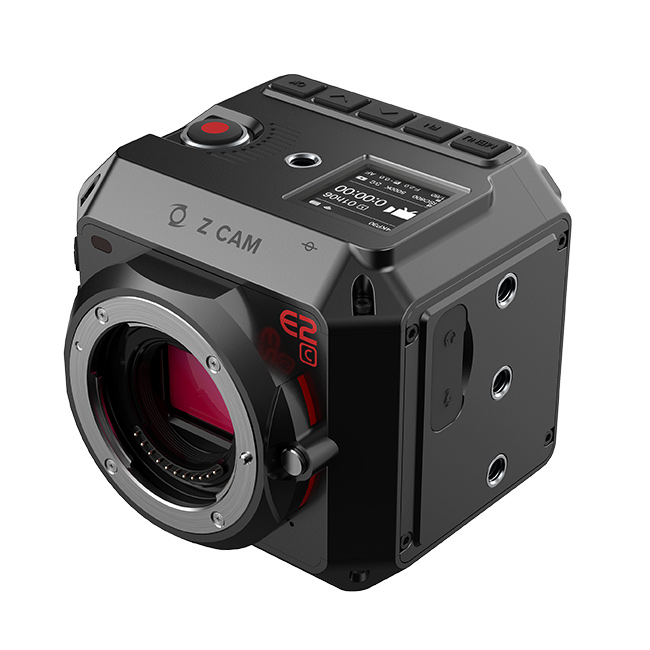

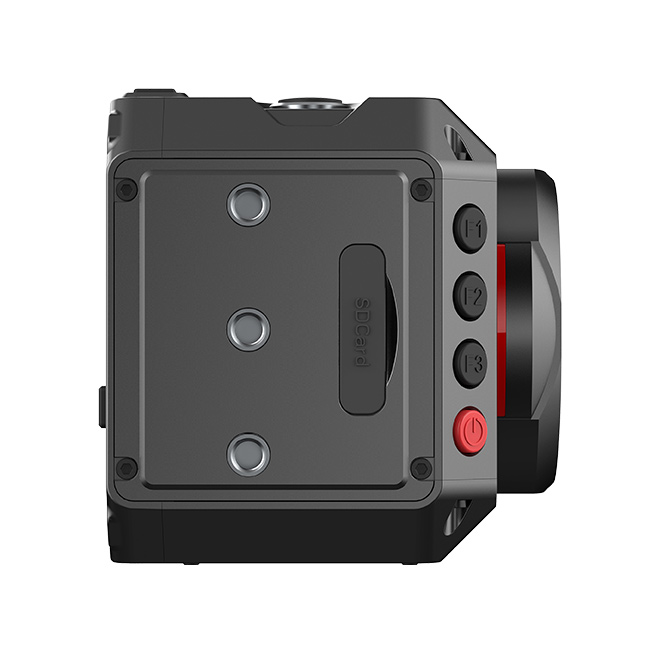

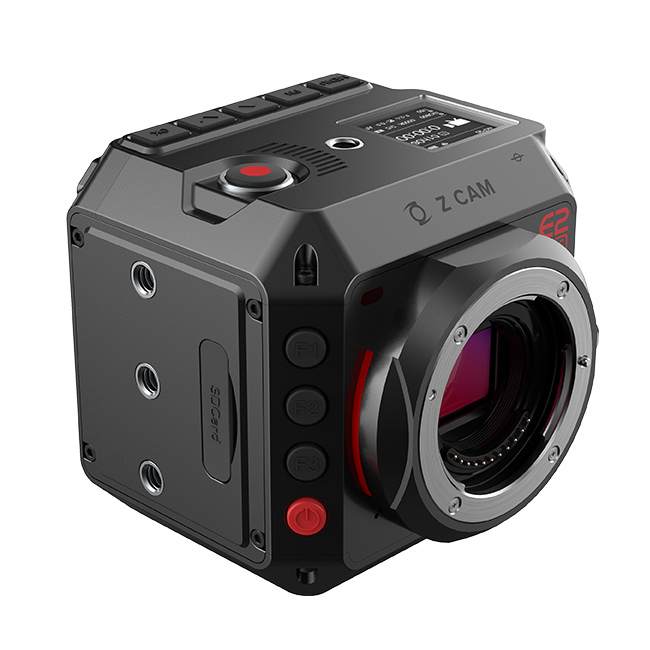

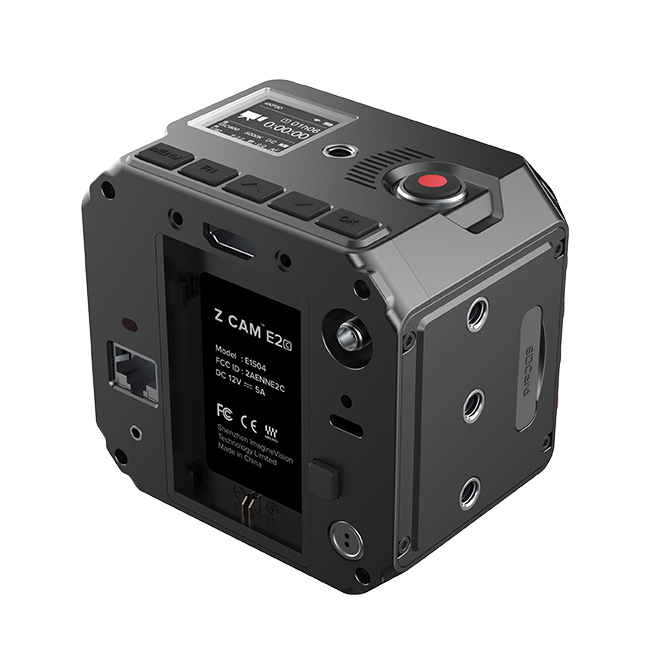

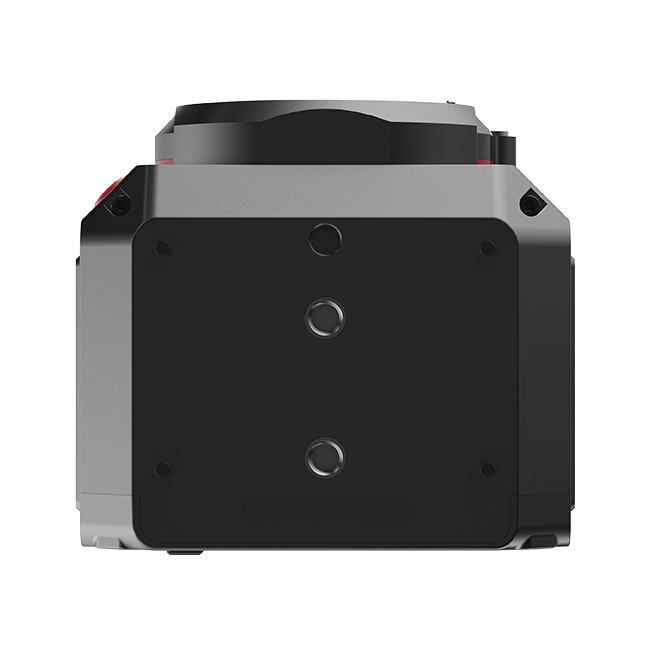

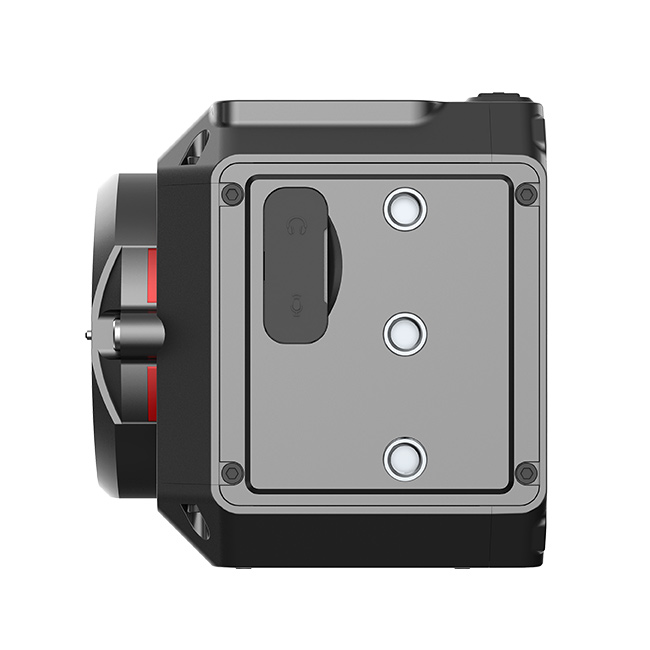

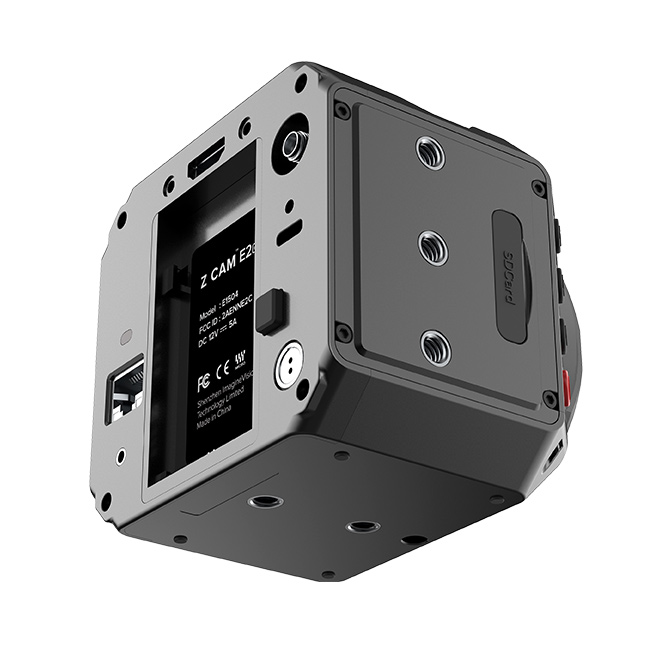

Z CAM E2C 4K Cinema Camera

Z CAM E2C
4K Cinema Camera

  • 12-Bit ProRes RAW recording over HDMI to the Ninja V 5” HDR monitor-recorder
  • 4K @ 30fps, 10-bit color
  • 4/3″ CMOS sensor
  • 11.5 stops dynamic range
  • Gigabit Ethernet for data, control & live streaming*
  • iOS app for control setting & live preview
  • POE supported

*Requires Z CAM software running on PC

49,995.00

Available on backorder

Description

The Z CAM E2C Professional 4K Cinema Camera shoots UHD 4K at up to 29.97 fps, as well as HD up to 59.94 fps, and records to an SDXC Class 10 card (not included). The camera features a 4/3″ sensor with 10-bit color support and nominal 11.5 stops of dynamic range. The camera supports recording video in MOV/MP4 using H.265 for 10-bit recording, while H.264 supports 8-bit recording, and a recent firmware update allows the camera to record in the ZRAW format. Audio is recorded in 24-bit 48 kHz using AAC or PCM (PCM for MOV format only).

You can use an available iOS app to control the camera via Wi-Fi and to view a live image preview. You can also control it locally by the buttons along the front edge of the camera. The camera powers via PoE, an LP-E6-series battery (not included), or via a DC input port. An included LEMO to D-Tap power cable allows you to power the camera from a D-Tap source. An optional AC to DC power adapter can also power the camera.

Firmware 0.88 Update

Firmware 0.88 brings ZRAW recording to the camera.

4K Capture and Recording

  • Unburdened by a recording time limit, you can record UHD 4K at up to 29.97 fps or 1080p at up to 59.94 fps, for up to the limit of your recording media’s capacity
  • CMOSW sensor with 11.5 stops of dynamic range (Z-Log2)
  • The camera supports REC.709, Z-Log2, FLAT, and HLG
  • H.265 (10-bit color) internal recording on SDXC Class 10 cards, UHS-1 Speed Class 3 recommended
  • Video output through HDMI 2.0 is supported
  • Full metal housing for efficient heat dissipation

Interfaces and Expandability

  • USB 3.0 Type-C for camera control and data transformation only
  • Ethernet port for live view, control, and file transfer to browser or a computer running Z CAM software
  • LANC port for remote control including power on/off

iOS App

Z Camera is a mobile application for camera live preview and control through Wi-Fi. It allows you to start/stop recording and adjust the camera settings remotely, and also has advanced features on camera live preview.

Camera Settings

  • White balance: Auto, preset, manual (2300 to 7500K)
  • Focus modes: MF, AF, CAF
  • Image: Brightness, contrast, saturation, sharpness
  • LUT: REC. 709, Z-Log2, FLAT, HLG
  • Timecode: Current time, manual input

Camera Body

  • Made from aluminum for strength and heat dissipation
  • There are nine threaded mounting holes around the outside chassis
  • Sensor plane marking for accurate distance measurements
  • Powers from optional AC/DC adapter or optional LP-E6-series batteries
  • Active MFT mount

Supported Lenses

Panasonic Lumix 14mm f/2.5 G
Panasonic Leica DG Summilux 15mm f/1.7 ASPH
Panasonic Lumix G Vario 7-14mm f/4 ASPH
Panasonic Lumix G Vario 14-140mm f/3.5-5.6 ASPH. POWER O.I.S.
Panasonic Lumix G 25mm f/1.7 ASPH.
Panasonic Lumix G 42.5mm f/1.7 ASPH. POWER O.I.S. Lens
Panasonic Lumix G X Vario 12-35mm f/2.8 II ASPH. POWER O.I.S.
Panasonic Leica DG Vario-Elmarit 8-18mm f/2.8-4 ASPH.
Panasonic Leica DG Macro-Elmarit 45mm f/2.8 ASPH. MEGA O.I.S
Lumix G X Vario 14-42mm f/3.5-5.6 Power O.I.S.

Sigma 19mm F2.8 DN Art

Olympus M.Zuiko Digital ED 8mm f/1.8 Fisheye PRO
Olympus M.Zuiko Digital ED 12mm f/2
Olympus M.Zuiko Digital ED 17mm f/1.2 PRO
Olympus M.Zuiko Digital ED 12-40mm f/2.8 PRO
Olympus M.Zuiko Digital ED 45mm f/1.2 PRO
Olympus M.Zuiko Digital ED 75mm f/1.8 Lens
Olympus M.Zuiko Digital ED 14-42mm f/3.5-5.6 EZ
Olympus M.Zuiko Digital ED 25mm f/1.2 PRO
Olympus M.Zuiko Digital ED 60mm f/2.8 Macro
Olympus M.Zuiko Digital ED 60mm f/2.8 Macro
Olympus M.Zuiko Digital ED 60mm f/2.8 Macro
Olympus M.Zuiko Digital ED 30mm f/3.5 Macro
Olympus M.Zuiko Digital ED 40-150mm f/2.8 PRO
Olympus M.Zuiko Digital ED 7-14mm f/2.8 PRO
Olympus M.Zuiko Digital ED 12-100mm f/4 IS PRO
Olympus M.Zuiko Digital ED 300mm f/4 IS PRO

echnical Specifications

Disclaimer: All product features and technical specifications stated are subjected to Z CAM‘s sole interpretation and explanation.
Specifications are subject to change without notice.

Camera Features

Sensor Type
4/3″ CMOS Sensor
Sensor Size
17.56 x 13.11mm
Effective Pixels
16.83M
Dynamic Range
11.5 Stops (Z-Log2)
Lens Mount
Micro Four Thirds
Microphone
Built-in Stereo Microphone

Recording

Resolution & Frame Rate
3840 x 2160 @ 29.97 / 25 / 24 / 23.98 fps
2880 x 2880 @ 29.97 / 25 / 24 / 23.98 fps
1920 x 1080 @ 59.97 / 50 / 29.97 / 25 / 24 / 23.98 fps
DCI 4K
Color Bit Depth
10-bit (H.265) / 8-bit (H.264)
Video Encoder *
H.265 main 10 profile / H.264 high profile
Audio Format
24-bit 48 kHz
Audio Encoder
AAC / PCM (for MOV only)
File Format
MOV / MP4
Record Mode
Video / Time Lapse Video

Settings

ISO
Auto, Manual (800 ~ 25600)
Shutter
Shutter Speed: Auto, Manual (up to 1/8000”) or
Shutter Angle: Auto, Manual (1° ~ 360°)
White Balance
Auto, Preset, Manual (2300K ~ 7500K)
Focus Mode
MF / AF / CAF
Brightness / Contrast / Saturation / Sharpness
LUT
Rec.709 / Z-Log2 / FLAT / HLG
Audio
Audio In / Audio Out Level
Time Code
Current Time / Manual Input

* Apple ProRes will be supported via firmware update after the certification program.

Storage

Media
SDXC Class 10 SD card. Recommend to use UHS-I Speed Class 3 (U3) ones for 4K video recording
File System
exFAT

Connectivity

HDMI
HDMI 2.0 Type A
USB
USB 3.0 Type C for camera control & data transfer only
Remote Control
2.5 mm jack socket (Sony LANC compatible)
Audio-in
3.5 mm stereo jack socket for active microphone only
Audio-out
3.5 mm stereo jack socket
Wi-Fi
802.11n, 2.4G with external antenna port
Ethernet
Gigabit Ethernet port for control, setting & live streaming, POE supported

Power

Battery
Canon LP-E6 compatible (Battery not included)
External Power Supply
DC 12V/1.5~5A, with power cable with D-TAP plug & D-TAP/DC connector (AC/DC adapter not included)
Power Over Ethernet (POE)
802.3at/af compatible, need CAT5E or above Ethernet cable

Physical

Material
Aluminum Alloy
Weight
668 g (without lens)
Dimensions (W x H x D)
91.2 mm x 83.9 mm x 89.1 mm (without lens)

Environment

Storage Temperature
-20 °C ~ 60 °C
Operation Temperature
0 °C ~ 40 °C
